The owner of this bathroom admitted he may have procrastinated on repairing what seemed like smallish problems until water stains started showing up in the next room. An elevated floor was built above the slab to allow room for pipes and a tile shower had served for 15 years but cracks in the grout and tile had allowed water to reach the support structure.
Painted flooring obscured the moisture beneath.
Once demolition began it became apparent that the damage was much worse than expected and the entire raised floor system needed to be replaced. Capillary action had carried the water between the subfloor and the flooring to the other end of the bathroom. Here is a gallery showing the discovery process and the rebuild. The owner chose yellow pine flooring with Vermont Natural Coatings floor finish.
-
- Paint obscured the moisture beneath.
-
- Signs of water carried to the opposite end of room.
-

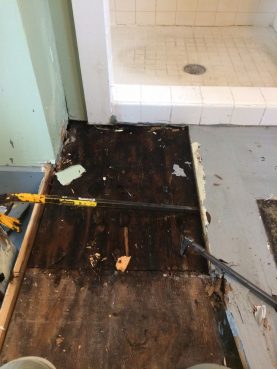

- Decomposed subfloor.
-
- Subfloor looks like dirt!
-
- Removing the tile shower.
-
- Subfloor removed.
-
- Joists removed.
-

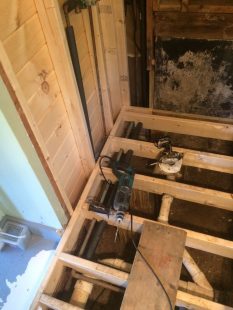

- New Joists.
-
- Step framing preserved.
-
- Working around the plumbing.
-
- Planning for the new shower.
-

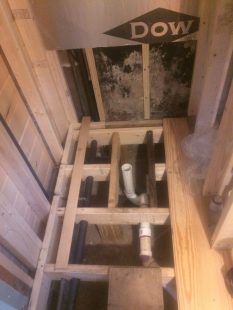

- Insulation added to foundation wall.
-
- New wall at back of shower faces the living room. Transparent white stain.
-
- Hole for ventilation.
-
- New studs to hold the shower stall.
-
- First flooring boards on and wainscot paneling.
-
- Spacing wall to accommodate smaller shower stall.
-
- Pre-finishing the flooring.
-
- Nice grain!
-
- Accommodating the new drain position with creative framing.
-
- Flooring going down.
-
- Now for the cut pieces.
-
- Shower installed.
-
- Toilet installed.
-
- New vanity built from flooring.
-
- Shower trimmed.
-
- Finished look of the floor.
-
- View toward the shower.
-
- New stacked washer and dryer.
